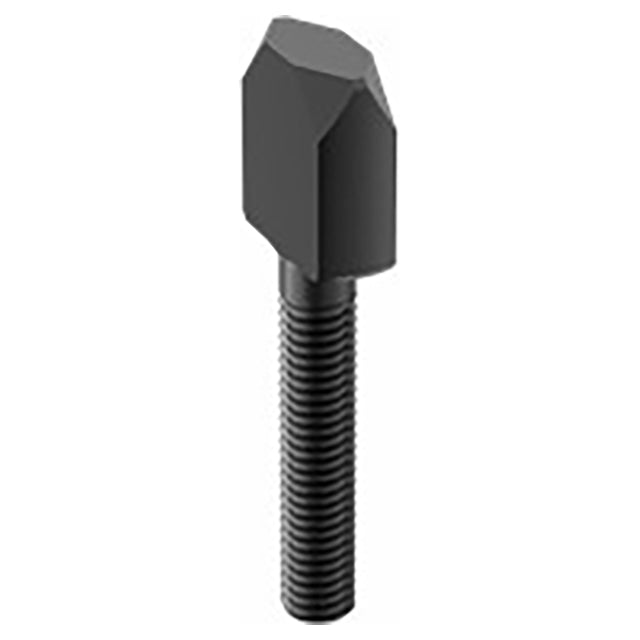

Quarter-Turn Screws
Rotate screw 90° (1/4 turn) to latch. Ideal for swing-away lids and jig plates. Beveled edges allow easy insertion into a slot. Quarter-Turn Screws can be used in open or closed slots. Made in USA.
Application Information
Quarter turn screws can be used in open or closed slots. Turn the screw 90 ° (1/4 turn) to secure.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) |
| M8 | 1.25mm | 60mm | 35mm | 25.5mm | 8mm | 40mm |
