Leveling Feet

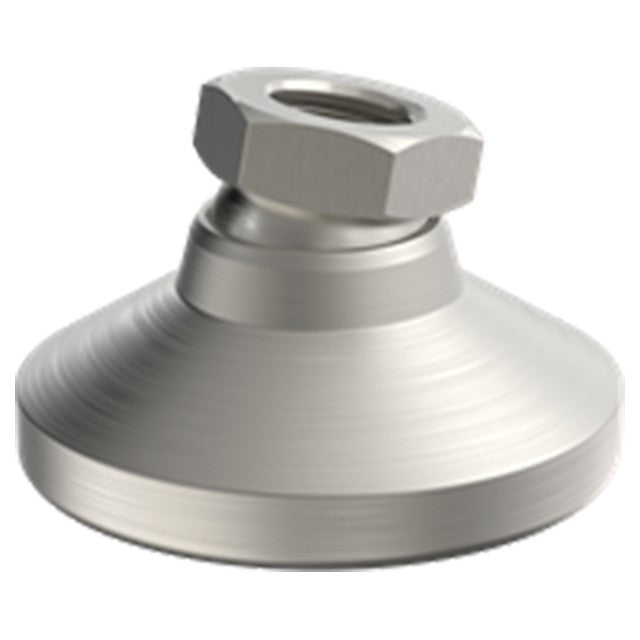

High-quality, heavy-duty leveling foot with a large-diameter pad. Large swivel ball provides high load capacity with a 20° total swivel angle. Made entirely of stainless steel for extra corrosion resistance. Made in USA.
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M8 | 1.25mm | 13mm | 28.5mm | 4.8mm | 20.5mm | 9.5mm | 700 kg |
