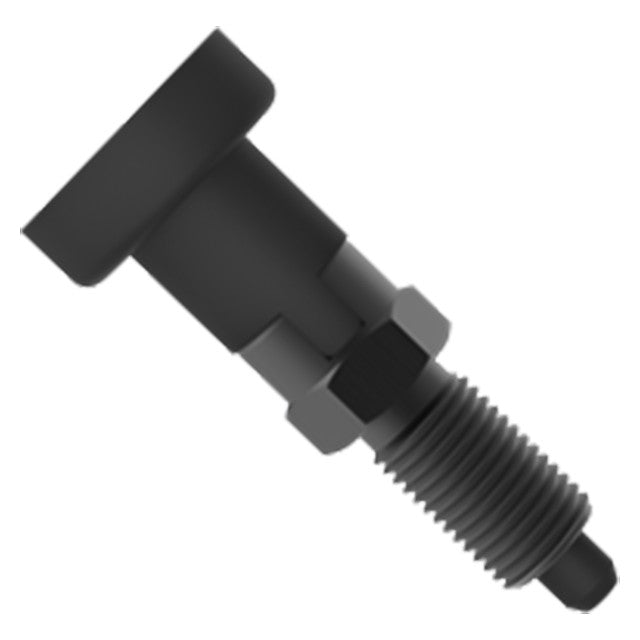

Hand-Retractable Plungers-Knob Handle
Precision indexing plunger with a attractive knob handle for convenient retraction. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger. Tip has a slight taper for easy alignment.
The locking type has a spring-loaded plunger that locks in retracted position. To lock, pull the knurled knob back and turn 90°. Body is notched at 90° to keep the knob in its retracted position.
Material
| Stainless Steel | ||||
| Item | Material | Heat Treat | Finish | RoHS |
| Knob | Stainless Steel | - | - | Yes |
| Plunger | Stainless Steel | - | - | Yes |
| Body | Stainless Steel | - | - | Yes |
| Jam Nut | Stainless Steel | - | - | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Diameter Nominal (mm) | B Diameter Actual (mm) | C (mm) | D (mm) | E (mm) | F Diameter (inch) | G (mm) | J (mm) | L (mm) | Initial End Force (lbs) | Final End Force (lbs) |
| M12 | 1.5 mm | 6 mm | 5.98/5.96 mm | 6 mm | 20 mm | 17 mm | 25" | 6 mm | 14 mm | 55 mm | 1.8 lbs. | 4.7 lbs. |
