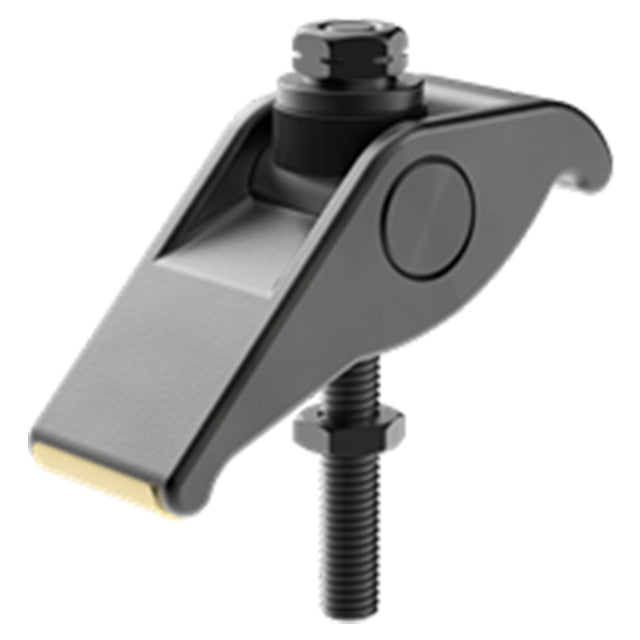

Forged Adjustable Clamps
Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Clamp Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |
Parts Specification
| Stud Size | Thread Pitch (mm) | Clamping Range (mm) | B (mm) | C (mm) | D (mm) | H (mm) | J (mm) | K Diameter (mm) | L Min (mm) | L Max (mm) | M Min (mm) | M Max (mm) | Forged Adjustable Clamp (Included) | Fully Threaded Stud (Included) | Flange Nut (Included) | Jam Nut (Included) |
| M12 | 1.75mm | 0 to 52mm | 102mm | 41mm | 29mm | 67mm | 17mm | 28mm | 35mm | 40mm | 54mm | 62mm | CL-8-FAC | CLM-12x110-FTS | CLM-12-FN | CLM-12-JN |
