Toggle Clamps

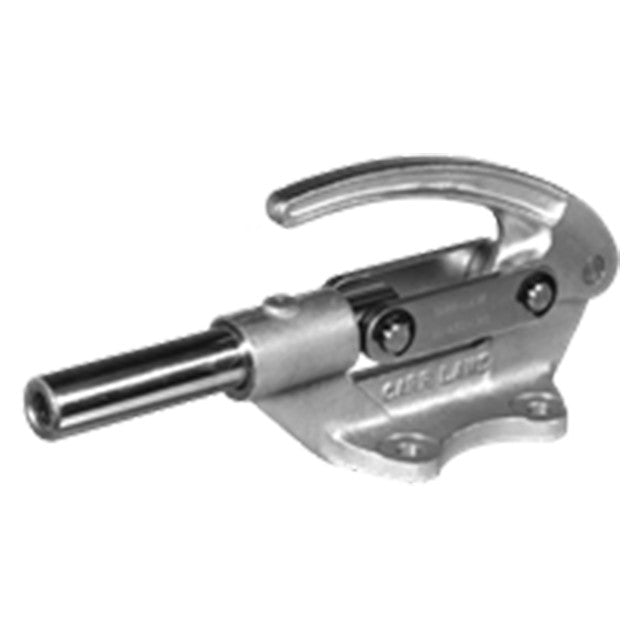

Tapped Plunger
Handle and base are made of alloy steel. Precision unit with snap ring pivot pins to allow removing the plunger even after the clamp is mounted. Locks in extended or retracted position.
Clamping Action
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle and Bases | Cast alloy steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Plunger and Links | 1215,1008,1010,and/or 1018 steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | M16 | 2mm | 16000lbs. | 5.7lbs. |
