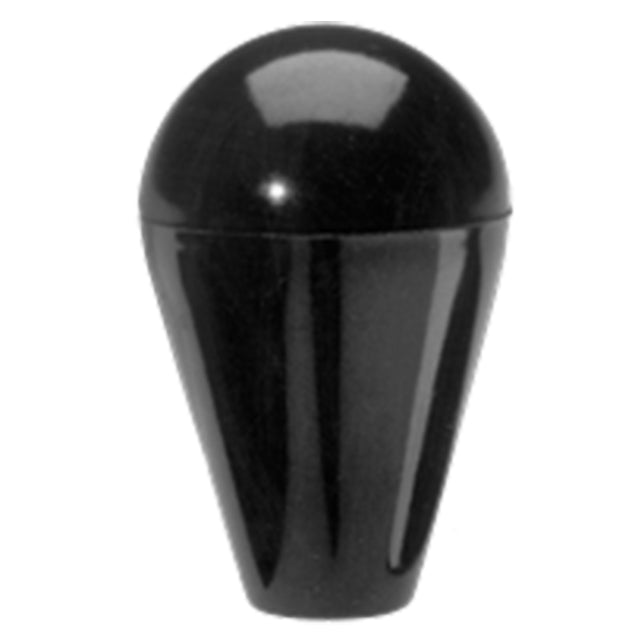

Oval Tapered Knobs-Tapped
Attractive design suitable for many applications, including control levers and push/pull rods. The phenolic version shown here is the most popular, with a hard smooth shiny finish. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Black phenolic plastic (glossy smooth Finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | Yes | Yes |
Parts Specification
| A Diameter (mm) | B (mm) | C Diameter (mm) | D Thread | Thread Pitch (mm) | E (mm) |
| 41mm | 64mm | 22mm | M12 | 1.75mm | 16mm |
