Leveling Feet

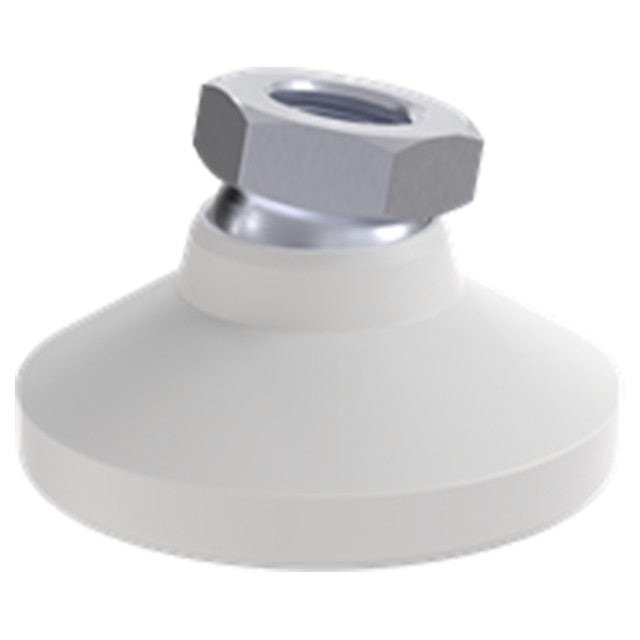

High-quality, heavy-duty leveling foot with a large-diameter Delrin pad. Large swivel ball provides a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| Pad | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M6 | 1mm | 13mm | 25.5mm | 4mm | 18mm | 8mm | 90 kg |
