Jig Feet Leveling

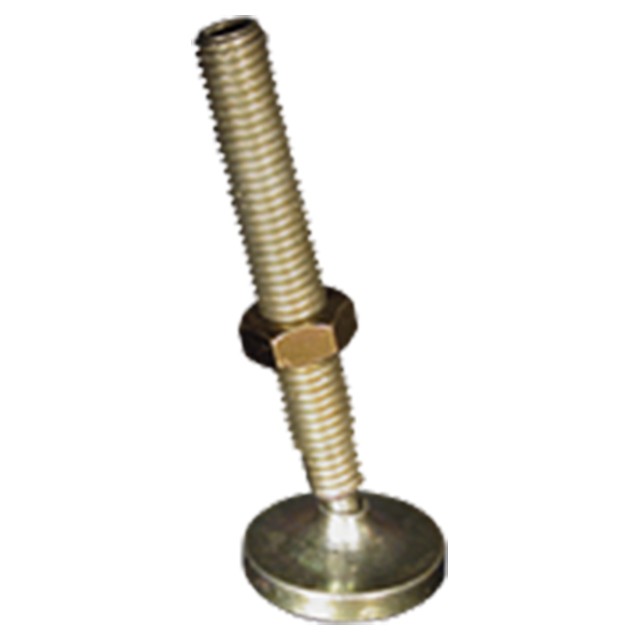

High-quality, medium-duty leveling foot with a removable pad and a handy hex socket that allows convenient adjustment from the stud end. The pad rotates and pivots freely with a 20° total swivel angle. Made in USA.
Application Information
This leveling foot has a hex socket that also allows using it as a screw clamp.
Swivel Foot
These leveling feet use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-hardened | Zinc plated yellow chromate | Yes | Yes |
| Pad | 1215 Steel | - | Zinc plated yellow chromate | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F (mm) | G (mm) | Load Rating (kg) |
| M20 | 2.5mm | 140mm | 27mm | 63.5mm | 9.5mm | 17mm | 10mm | 800 kg |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
