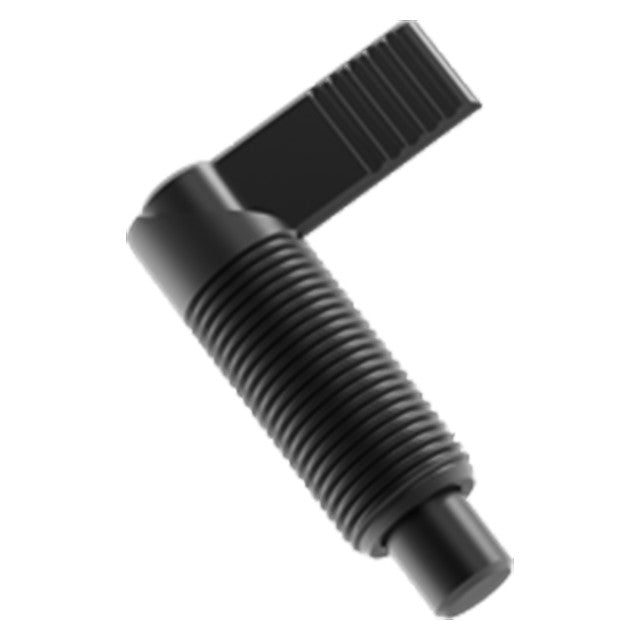

Hand-Retractable Plungers Cam Handle
Precision Cam actuated index plunger. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Lever Arm | Steel | - | Black Oxide | Yes |
| Plunger | Steel | Heat Treated | - | Yes |
| Body | Steel | - | Black Oxide | Yes |
| Sleeve | Plastic | - | - | Yes |
Parts Specification
| A Diameter (mm) | B Thread | Thread Pitch | C (mm) | D (mm) | E (mm) | F (mm) | Initial End Force (lbs) | Final End Force (lbs) |
| 6.0mm | M16 | 1.5 | 55.9 mm | 9.9 mm | 32.0 mm | 30.0 mm | 2.5 lbs. | 6.5 lbs. |
