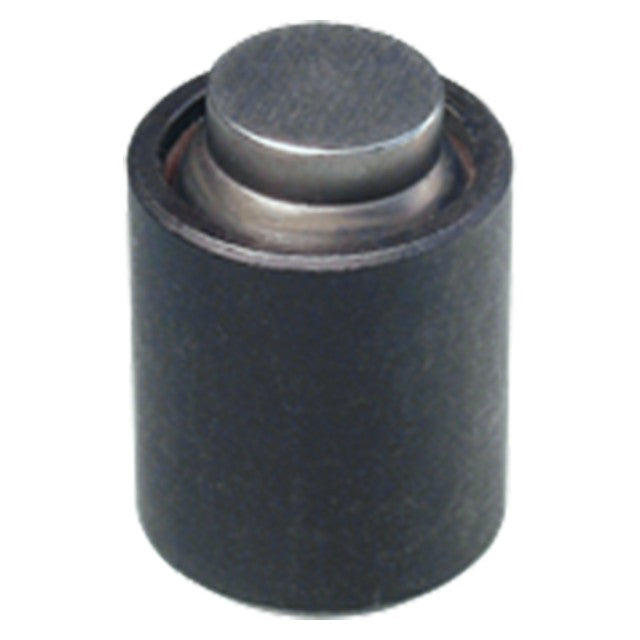

Gripper Swivel Pads-Mini
Mini-size rest pad with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Flat steel swivel ball | Steel, hardened | - | Black Oxide | Yes | Yes |
| O-ring | Ruber | - | - | Yes | Yes |
Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D Thread | Thread Pitch (mm) | E (mm) | F Ball Diameter (mm) | G | H (mm) | Load Capacity (kg) |
| 6mm | 10mm | 12mm | M4 | 0.7mm | 3.5mm | 7mm | 14° | 1.5mm | 1100 kg |
