Detent Pins

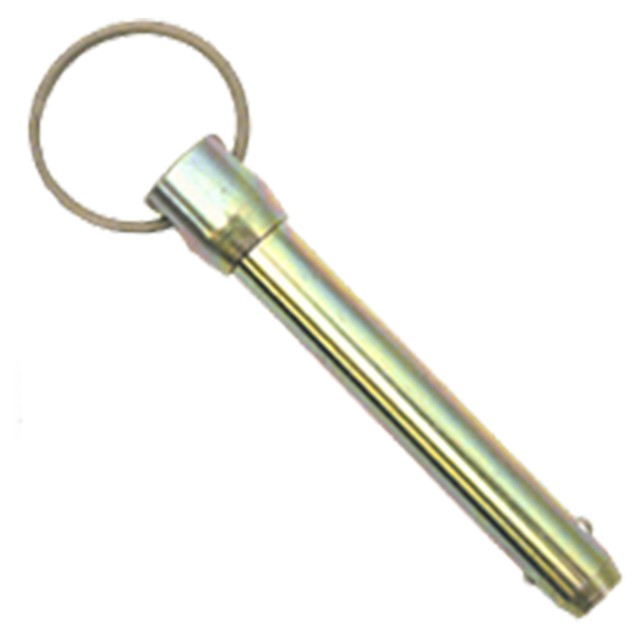

Quick-release alignment pin with a solid shank and spring-loaded locking balls. The integral head provides exact grip-length tolerance. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.
Technical Information
Locking balls hold the pin in place by spring force. Simply push the pin to insert, and pull to remove. 3/16"-diameter pins have only one locking ball instead of two due to their small size.
Optional Cable
To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.
Material
Stainless Steel:Shank > 300-series Stainless Steel. Spring > 17-7PH or 302 Stainless Steel. Ring > 302 Stainless Steel. Balls > 440C Stainless Steel. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | Grip Length (mm) | B (mm) | C (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) |
| 6mm | 5.95mm | 40mm | 6.75mm | 8.74mm | 9.5mm | 25.5mm | 14.3mm |
