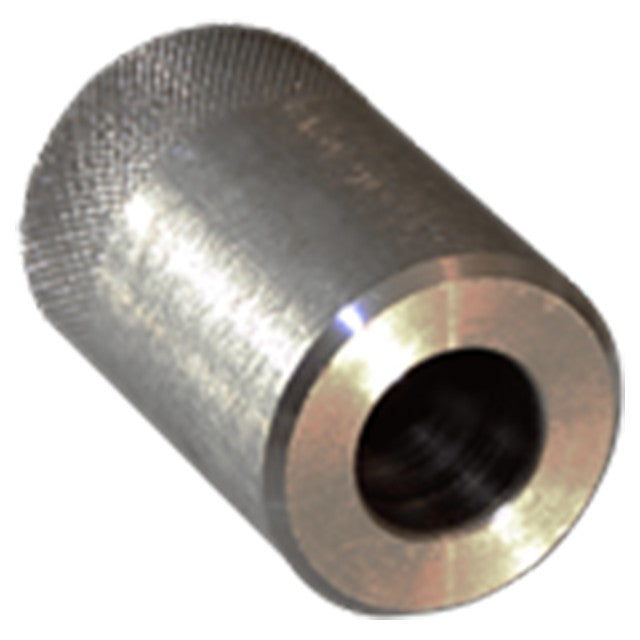

Ball Lock Receiver Caps
Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance. The Receiver Cap's inside diameter fits the Ball Lock Pin exactly, and is stepped to provide a perfect locking surface for the balls. Please note that using a Receiver Cap reduces the Ball Lock Pin's effective grip length (see D dimension for reduction in grip length). Made in USA.
Application Information
Ball Lock Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance.
Optional Cable
Receiver Cap is tapped to allow fastening the terminal end of a standard Ball Lock Pin cable assembly, CL-82-KA-12.0 (12.0" long), and includes a fastening screw.
Material
300-series Stainless Steel, passivated. DFARS and RoHS compliant.
Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D (mm) | E Thread | Thread Pitch (mm) |
| 6mm | 12.5mm | 24mm | 10mm | M5 | 0.8mm |
