Ball Lock Coupling Rings

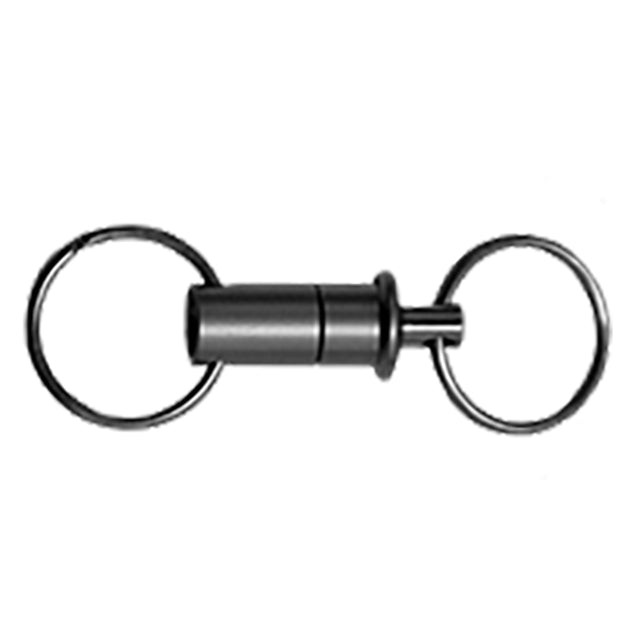

This tiny quick-release coupling assembly incorporates a rugged, high-quality Ball Lock Pin mechanism. Allows quick, reliable connection and disconnection of Items attached to a cable assembly. Simply press the button to release. One half of the coupling ring is essentially a small Ball Lock Pin with a split ring through the push button; the other half is a mating receiver, also with a split ring through it. The coupling is positive locking until released by pushing the button, which moves the center spindle forward to allow the locking balls to retract. Made of 300-series stainless steel for excellent corrosion resistance.
Application Information
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | ||
| Pin | 303 Stainless Steel | N/A | N/A | ||
| Receiver | 303 Stainless Steel | N/A | N/A | ||
| Ring | Stainless Steel | N/A | N/A | ||
| Spring | Stainless Steel | N/A | N/A | ||
| Balls | Stainless Steel | N/A | N/A | ||
Parts Specification
| Pin Diameter | Rated Load Capacity (lbs) | Maximum Operating Temperature |
| 6MM | 7 lbs | 480°F |
