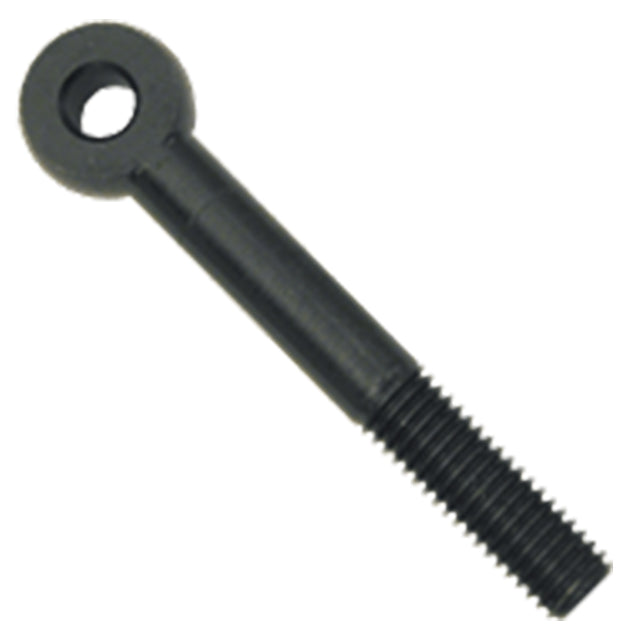

Eye Bolts
High-strength Eye Bolt with a reamed bearing hole.
Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 300-series stainless steel | - | Passivated | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | D Diameter(mm) +.05/-.00 | B (mm) | C (mm) | E (mm) | F (mm) +.00/-.13 |
| M12 | 1.75mm | 12mm | 125mm | 50mm | 24mm | 12mm |
