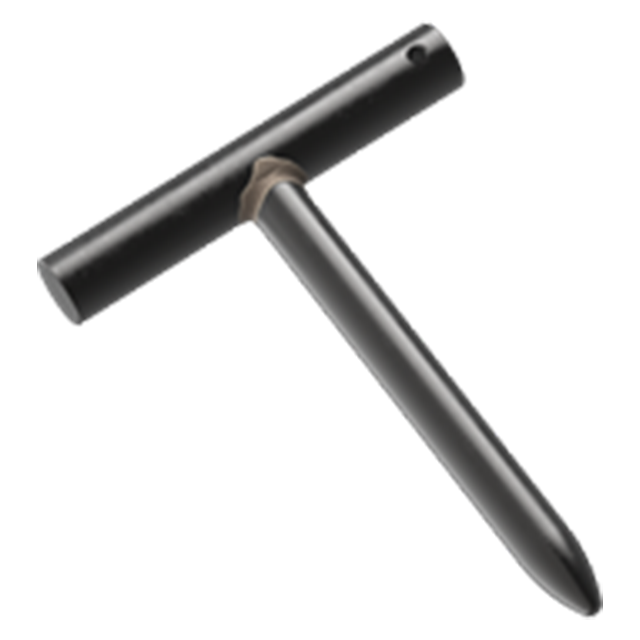

T Pins
are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable.Made in USA.
Application Information
T Pins can be used for accurately aligning two plates
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Dimaeter (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
| 5mm | 152mm | 63.5mm | 8mm | 5mm |
