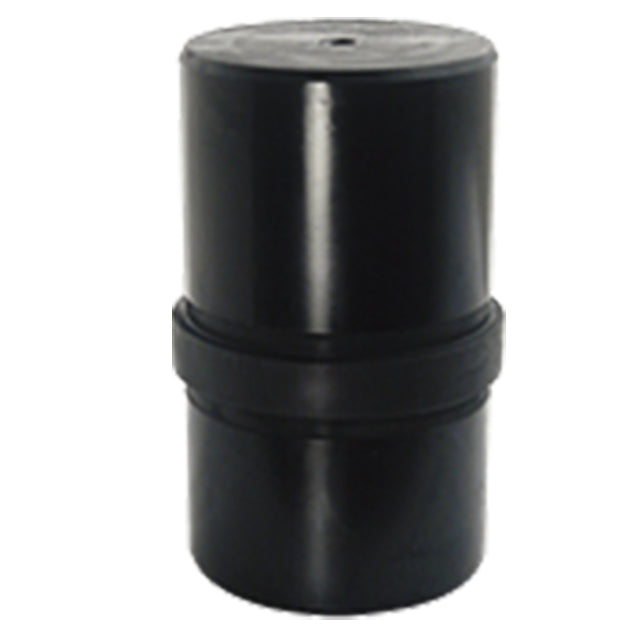

Pallet Fixture Keys
Used for mounting tooling plates and blocks on standard DIN pallets. Each pallet requires one center key and one radial key (for orientation). If desired, the radial key can be removed after fastening the pallet to the machine table. The tapped hole in the top of each pin makes insertion and removal easier. Made in USA.
Application Information
Each pallet requires one center key and one radial key (for orientation).
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual | B Diameter Nominal (mm) | B Diameter Actual | C |
| 50mm | 1.9681 / 1.9676 | 50mm | 1.9681 / 1.9676 | 3.42 |
