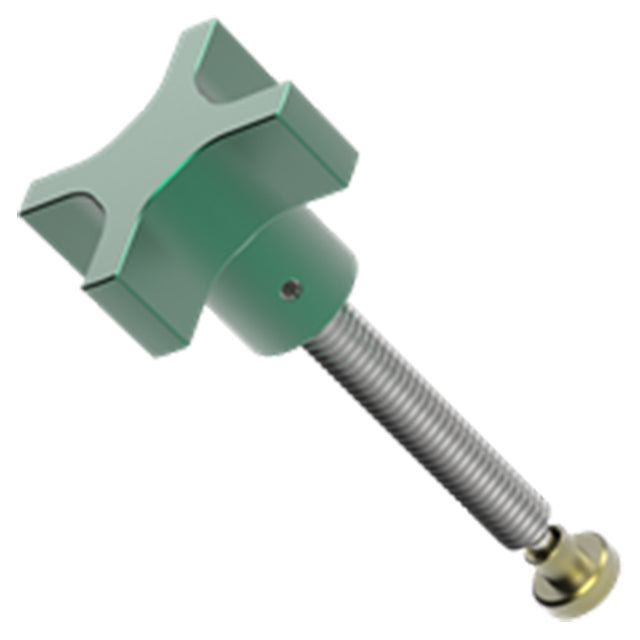

Extruded Hand Knob Swivel Feet
Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. F-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | - | Green Anodize | - | Yes |
| Screw | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Steel Foot | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Delrin Foot | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | EDiameter (mm) | F (mm) | G | H (mm) | KDiameter (mm) |
| M10 | 1.5mm | 50mm | 4.8mm | 51mm | 14.5mm | 11mm | CLM-10T-HKE-30 | 35mm | 21mm |
