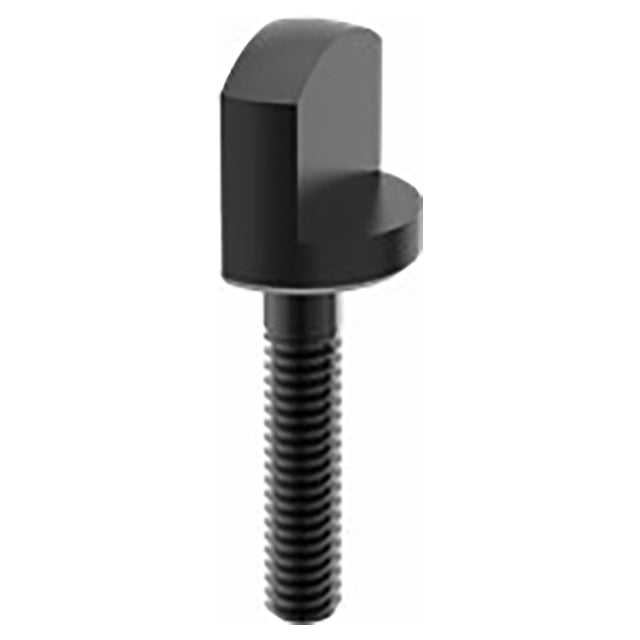

Half-Turn Screws
Rotate screw 180° (1/2 turn) to latch. Allows latching swing-away lids and jig plates without machining a slot. Made in USA.
Application Information
Turn the screw 180 degrees (1/2 turn) to secure.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | G (mm) |
| M5 | 0.8mm | 43mm | 22mm | 19mm | 5mm | 25mm | 5mm |
