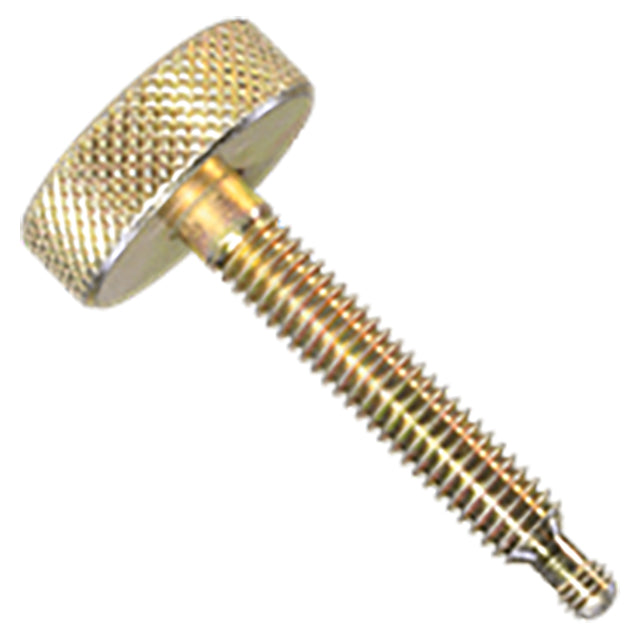

High-quality thumb screw that accepts a wide assortment of swivel feet . Knurled head provides a positive grip for finger tightening in light clamping applications. Made in USA.
Swivel Foot
Swivel Head Screws use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Material
| Steel, Black Oxide Finish | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Black Oxide | ✔ | ✔ |
| Head | 1215 Steel | - | Black Oxide Finish | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | D Dia (mm) | E (mm) | F (mm) | G (mm) | H Thread |
| M10 | 1.5 mm | 32 mm | 11 mm | 98.5 mm | 4.8 mm | 1/4-28 LH |
