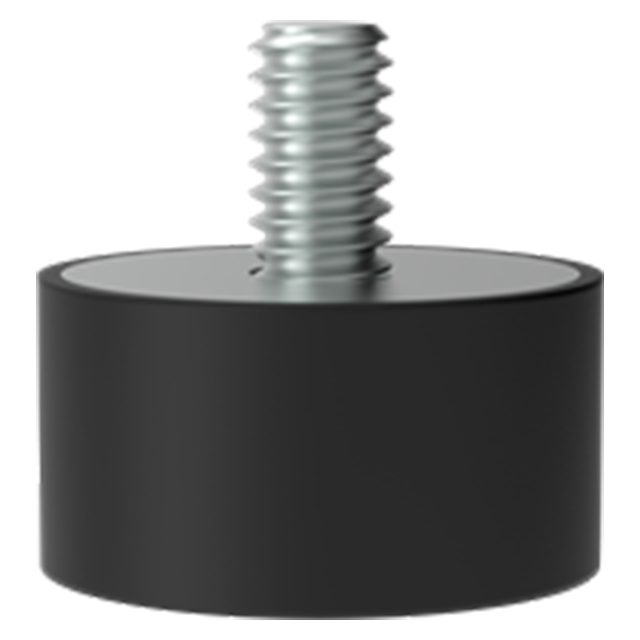

Vibration Isolation Mounts
Vibration / Isolation shock-absorbing mount designed to reduce vibration-related damage. The mount absorbs the majority of kinetic energy upon impact. Resulting in reduced shock/rebound damage and reduction in noise. These shock-absorbing mounts are frequently used as end-stop buffers or dampers.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Body | Natural Rubber (NR) | Yes | Black | Yes |
| Cover Plate | Steel | Yes | Zinc Plated | Yes |
| Threaded Stud | Steel | Yes | Zinc Plated | Yes |
Parts Specification
| A Diameter (mm) | B (mm) | C (mm) | D Thread (mm) | Thread Pitch (Inch) | Spring Rate (lbf./in) | Max Load (lbf./in) | Max Deflection (mm) |
| 30mm | 20mm | 20mm | M8mm | 1.25" | 1171 lbf./in | 227 lbf./in | 5mm |
