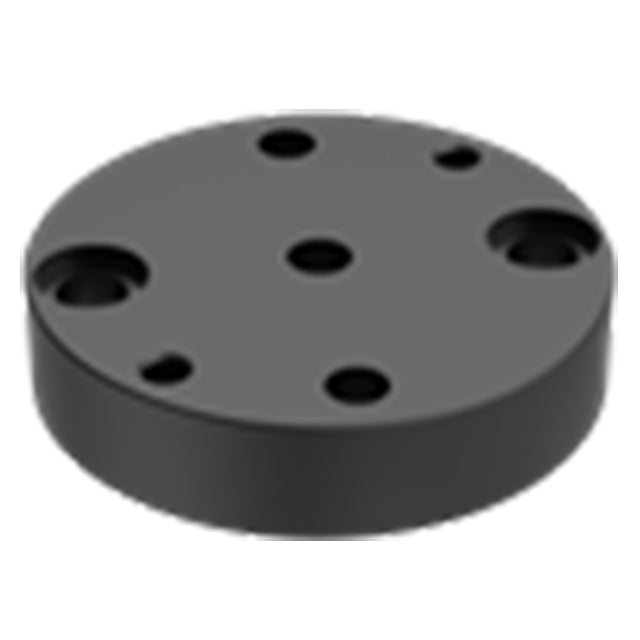

Reversible Construction Ball Pad Metric
Reversible round pad for mounting a Construction Ball. These round pads should be fastened with two ultra-low-profile socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a m5 setscrew (not furnished) in the crosshole. Made in USA.
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 17-4PH Stainless Steel | - | Passivated | Yes | Yes | |
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) |
| 3mm | 3.010 / 3.000mm |
