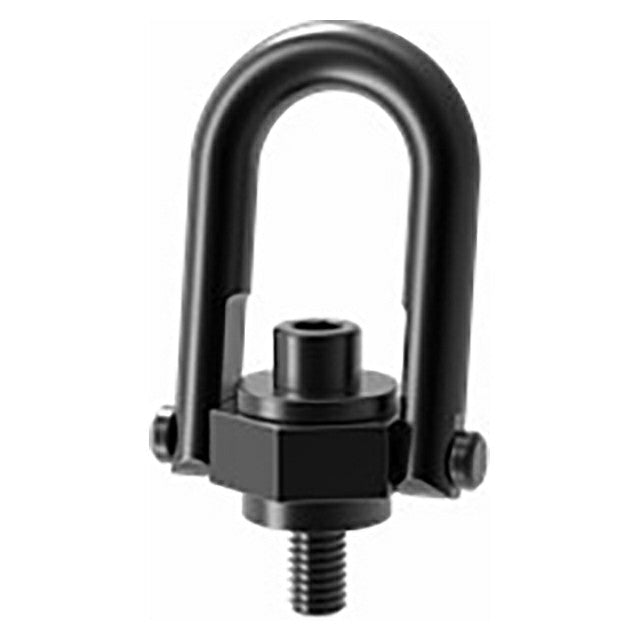

Swivel Hoist Rings
Carr Lane standard swivel hoist rings are the original safety-engineered hoist ring. These safety swivel hoist rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Standard swivel hoist rings feature a safety factor of 5:1. Made in USA.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Optional Electroless-Nickel Finish
This optional Finish offers excellent corrosion and wear resistance while still providing the full load capacity of the heat-treated alloy-steel hoist rings. Electroless nickel is a hard, uniform coating that is very resistant to a wide range of chemicals, which makes these hoist rings suitable for many corrosive and marine environments.
Installation
Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker Materials and for through-hole mounting with a washer and nut.
Material
| Item | Material | Heat Treat | Finish |
| Swivel Hoist Rings (Standard Ring) | Alloy Steel | Heat Treated | Black Oxide or Electroless Nickel Finish |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 12500 kg | M42 | 4.5mm | 79mm | 71mm | 317mm | 44mm | 57mm | 203mm | 124mm | 217mm | 123mm | 282mm | 107mm | 12mm | 1100 Nm |
