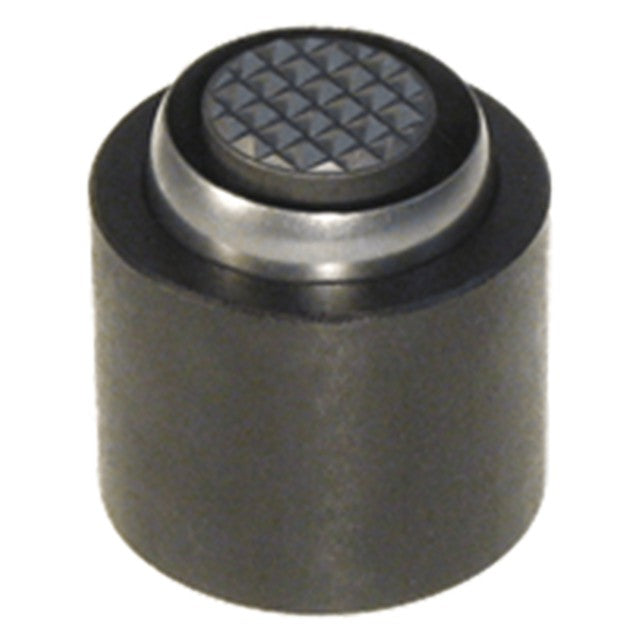

Gripper Swivel Pads
Rest pad with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Pads include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.
Application Information
Gripper Swivel Pads can be surface mounted or installed in a counterbored hole.
Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D Thread | Thread Pitch (mm) | E (mm) | F Ball Diameter (mm) | H (mm) | J (mm) | Matching Round Gripper Size |
| 25mm | 36mm | 36mm | M12 | 1.75mm | 12mm | 28mm | 32mm | 38mm | CLM-25-RGx |
