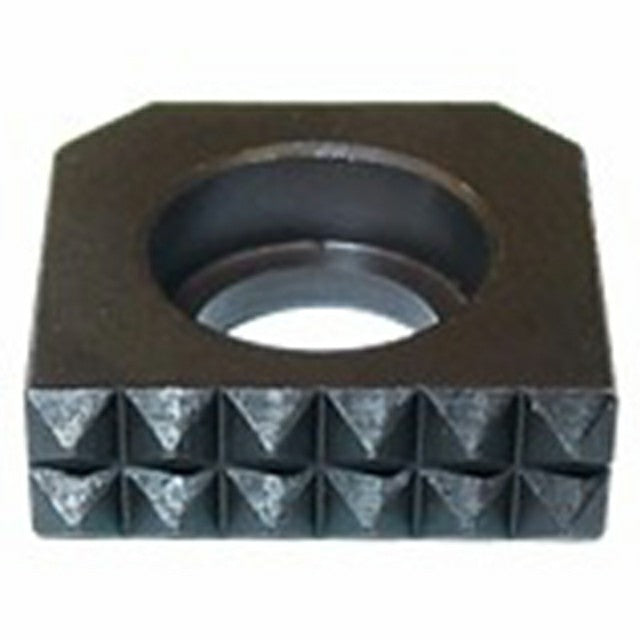

Edge Grippers
are helpful for applications where traditional face-mounted grippers are difficult to install. They have a useful flat profile because the mounting screw is parallel to the serrated face. Edge Grippers are ideal for mounting at the top edge of a clamping face such as a vise jaw. These serrated grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. Made in USA.
Application Information
Edge Grippers are ideal for mounting at the top edge of a clamping face such as a vise jaw.
Installation
Edge Grippers should be mounted in a flat-bottom recess that provides support behind the gripper. Fasten with a standard socket-head cap screw (on the largest three sizes, a low-head cap screw is required). The serrated face should project 50 to 100% of serration height for maximum effectiveness (serration height is .062" on grippers with .125" x 90 Degree fine serrations, .047" on grippers with .094" x 90 Degree extra-fine serrations, .and .031" on grippers with .062" x 90 Degree super-fine serrations).
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| M-2 Tool Steel | Heat Treated Rc 60-62 | Black Oxide | Yes | Yes |
Parts Specification
| A (mm) | B (mm) | Serrations | Serration Dimensions (mm) | C Mounting Screw | Counterbore Depth (mm) | D (mm) |
| 25mm | 12mm | FINE | 3.2x90 Degreemm | M10 or 3/8 | 6.6mm | 3.2mm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
