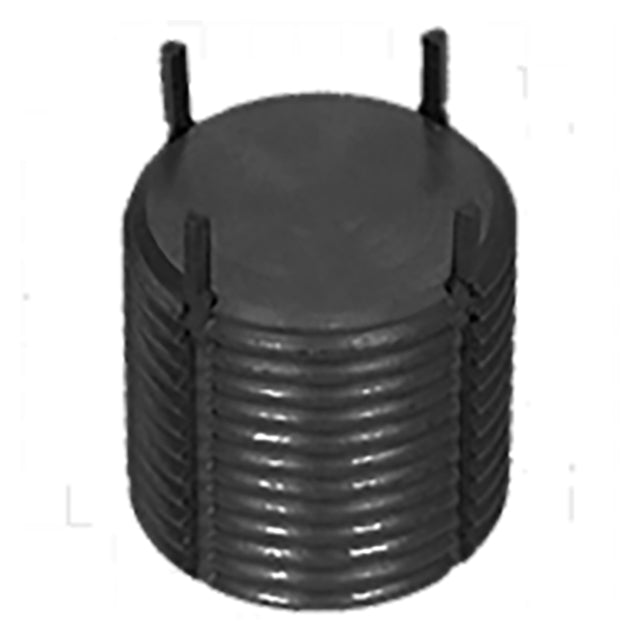

Solid Key Inserts are ideal for relocating a drilled or tapped hole. This threaded plug installs quickly, and the locking keys positively prevent the insert from rotating.
Application Information
Before Repair (left). After Repair (right).
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide or Dry Lube | ✔ | ✔ |
| Keys | 302 Stainless Steel | - | - | ✔ | ✔ |
Parts Specification
| External Thread | External Thread Pitch (mm) | L Length (mm) | K Minimum (mm) | Shear Engagement Area (sq Mm) |
| M24x1.5 | 1.5 mm | 24 mm | 20.5 mm | 1130 sq mm |
