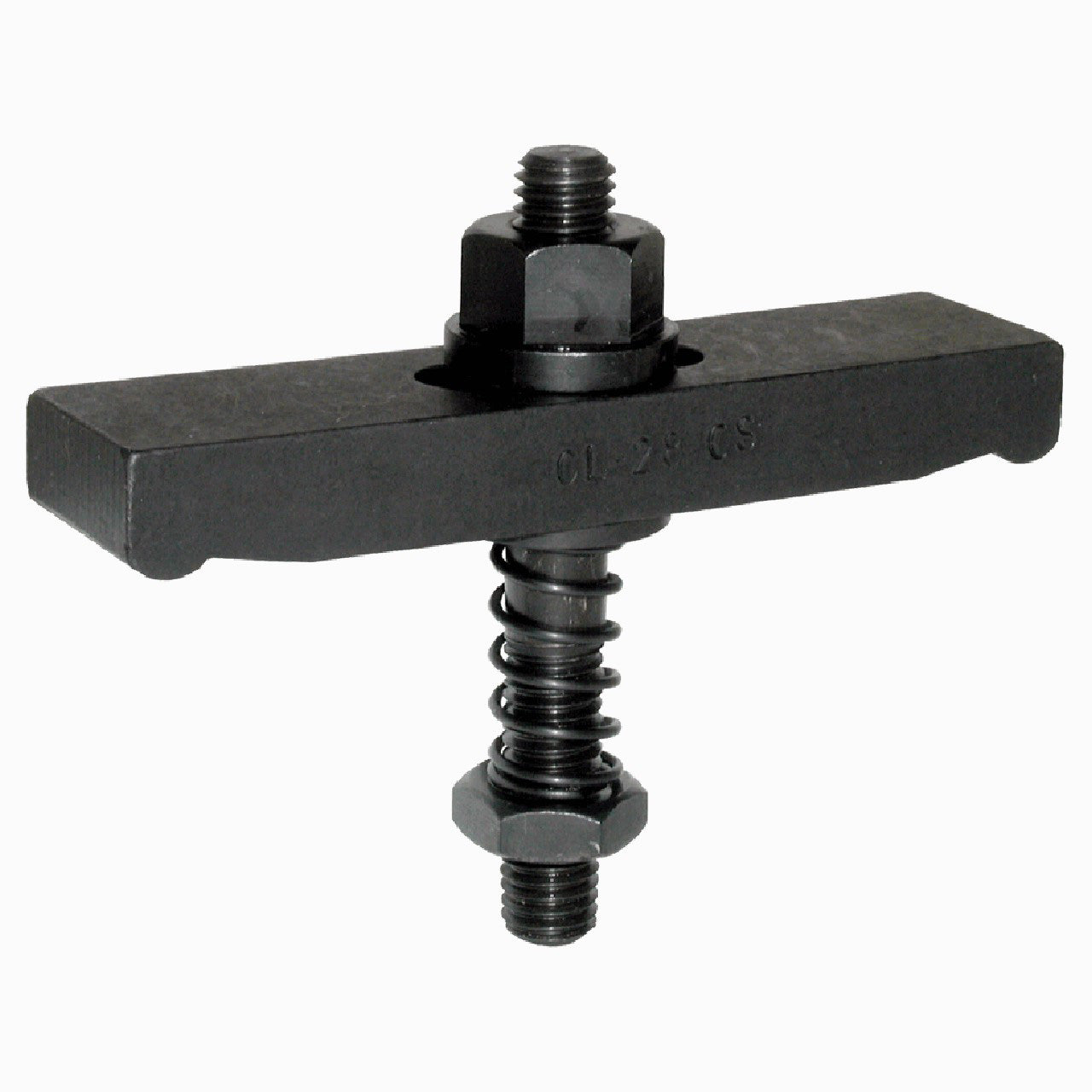

Double-End Clamp Strap Assembly
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.
Assembly with Flange Nut (-2)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Flange Nut
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Flange Nut |
| M20 | 2.5mm | 203mm | 44.5mm | 25.5mm | CL-39-CS | CL-13-SPG | CLM-10-FW | CLM-20x125-STUD | CLM-20-JN | CLM-20-FN |
