Tapped-Heel Clamp Strap Assembly
Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.

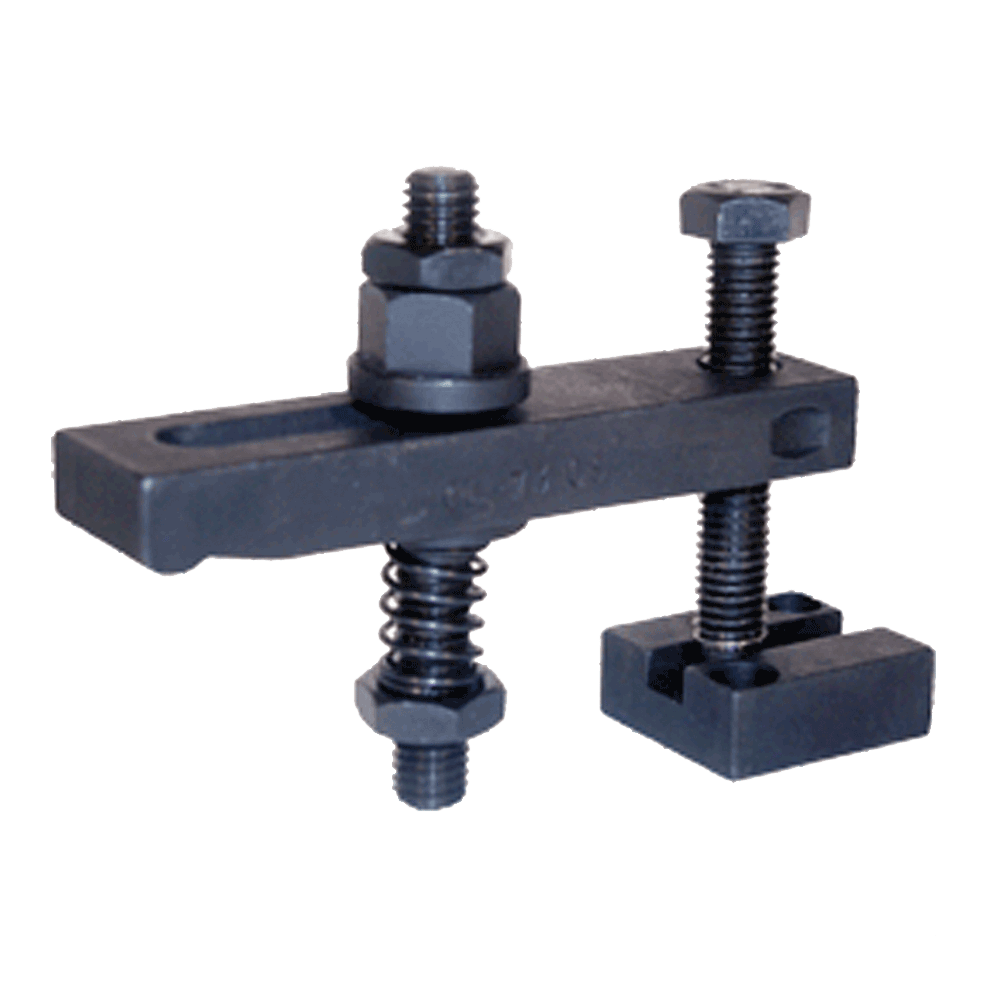

Assembly with Hex-Head Clamping Screw (-HH)
This assembly includes a Tapped-Heel Clamp Strap plus the following Items:
- Hex-Head Clamping Screw
- Guide Block
- Spherical Nut & Washer
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nuts (2)
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Stud Thread | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F Thread | Thread Pitch (mm) |
| M16 | 2mm | 101.5mm | 38mm | 22mm | 32mm | M6 | 1mm |
