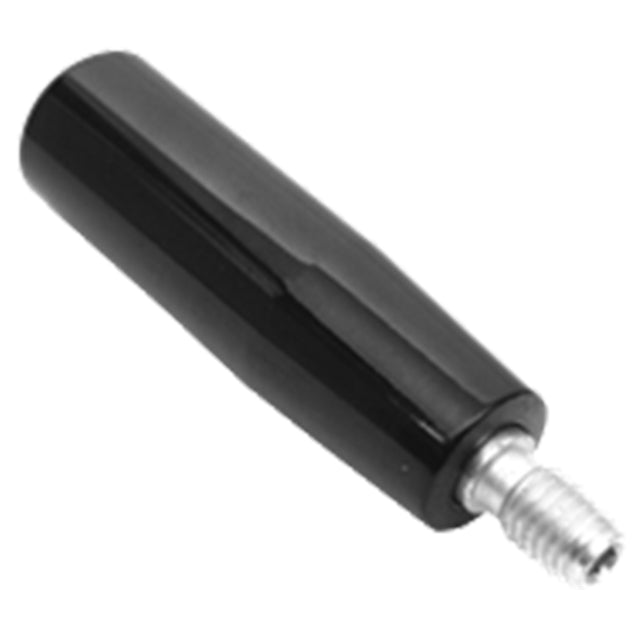

Revolving Handle
Modern square-design handle made of phenolic plastic with a threaded steel spindle. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank. Threaded spindle has a hex socket for easy installation.
Application Information
Revolving Handles can be used to make custom crank handles.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals) | - | - | ✔ | ✔ |
| Threaded Spindle | Mild Steel | - | Zinc Plated Clear Chromate, Molded In | ✔ | ✔ |
Parts Specification
| A (mm) | B (mm) | C Thread | Thread Pitch (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) | G (mm) |
| 52.5mm | 13mm | M8 | 1.25mm | 21mm | 10mm | 4mm | 2.5mm |
