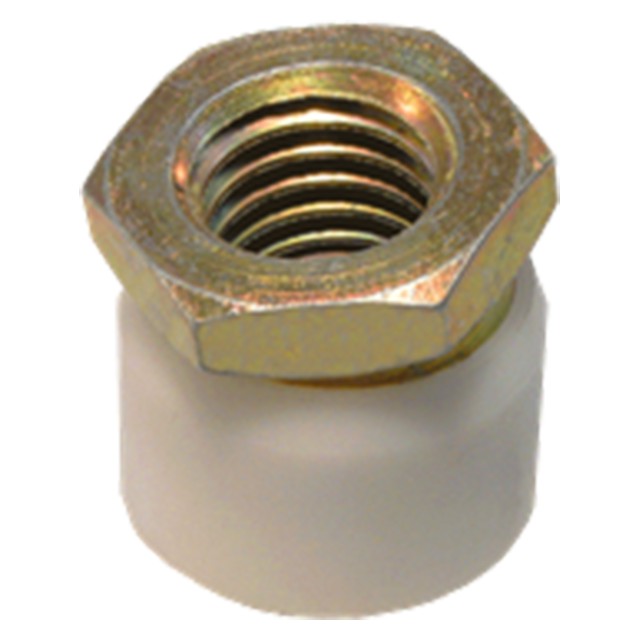

Swivel Pad Feet
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | carburized-hardened zinc plated yellow chromate | Yes | Yes |
| Pad | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
| M20 | 2.5mm | 30mm | 34mm | 32mm | 16mm |
