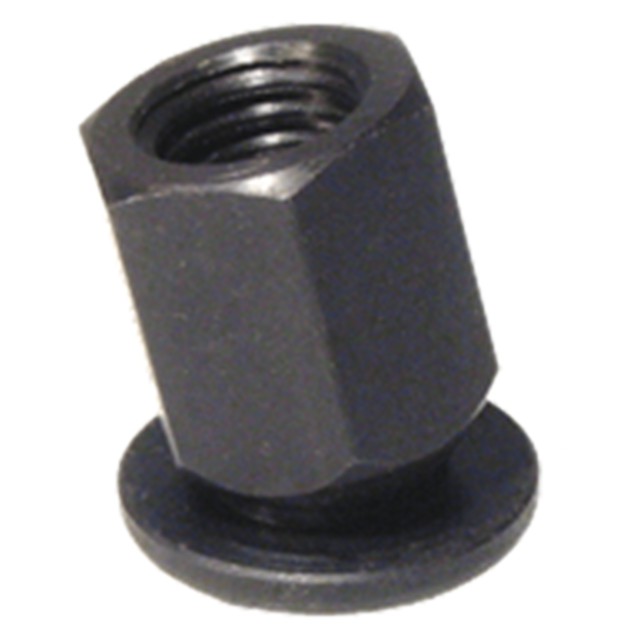

Swivel Pads
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Steel Pad | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Delrin pad | Aluminum | - | White Delrin 500 | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) |
| M20 | 2.5mm | 30mm | 28.5mm | 9mm | 32mm | 2.5mm | 4mm | 35mm |
