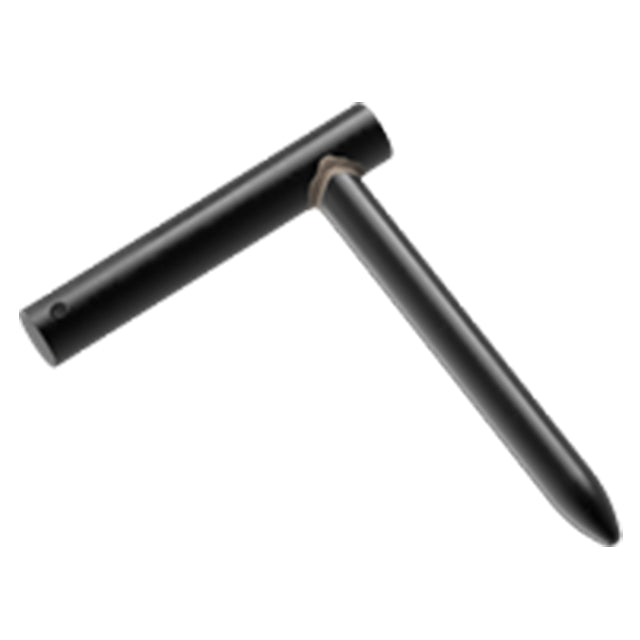

L Pins
are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. L shaped pins are available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA.
Application Information
L Pins can be used for accurately aligning two plates
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
| 20mm | 152mm | 89mm | 22mm | 17.5mm |
