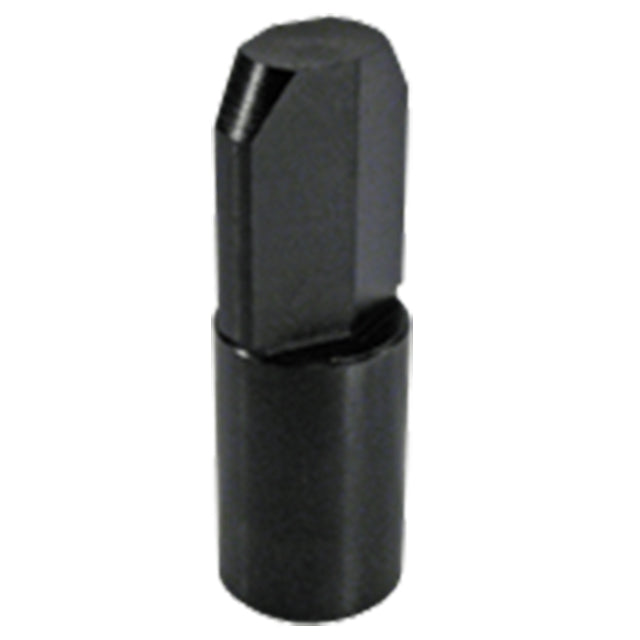

Diamond Pins
Precision locating pins that have a chamfered tip for easy part loading, and a shoulder to resist downward forces. These locating pins have important advantages over standard dowel pins. One Round Pin and one Diamond Pin are often used together to locate from two mounting holes in a workpiece, or to align two pieces of a fixture, without binding.
These stainless-steel diamond pins are relieved, to locate only in 1 axis. Head and shank diameters are concentric to within .0005" TIR.
Made in USA.
Diamond Pin Locating Principles
When a Round Pin and Diamond Pin are used together, the Round Pin is the primary, 2-axis locator, while the Diamond Pin is the secondary, 1-axis locator. Diamond Pins are relieved to locate only radially around the Round Pin, avoiding redundant location. This prevents binding while loading and unloading the part, yet still maintains high accuracy.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Head Diameter Nominal (mm) | A Head Diameter Actual (mm) | B Shank Diameter Nominal (mm) | B Shank Diameter Actual (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 16mm | 15.872 / 15.860mm | 14mm | 14.008 / 14.002mm | 21.3mm | 8.6mm | 5.8mm | 44.5mm |
