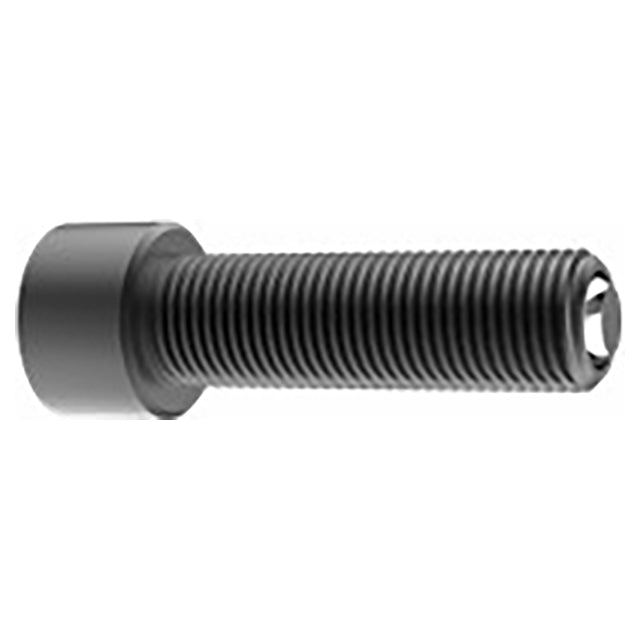

Ball-End Thrust Screws-Swivel Ball
Ball-End Thrust Screws are heavy-duty screw clamps with a ball contained in the end. These thrust screws have a large head and large hex-socket for excellent strength. Made in USA.
Material
| Item | Material | Heat Treat | Finish |
| Body | Alloy Steel | Yes | Black Oxide |
| Ball | 440c Stainless Steel | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F Diameter (mm) | G (mm) | H Diameter (mm) |
| M16 | 2mm | 126.6mm | 125mm | 11.11mm | 16mm | 24mm | 14mm | 9mm |
