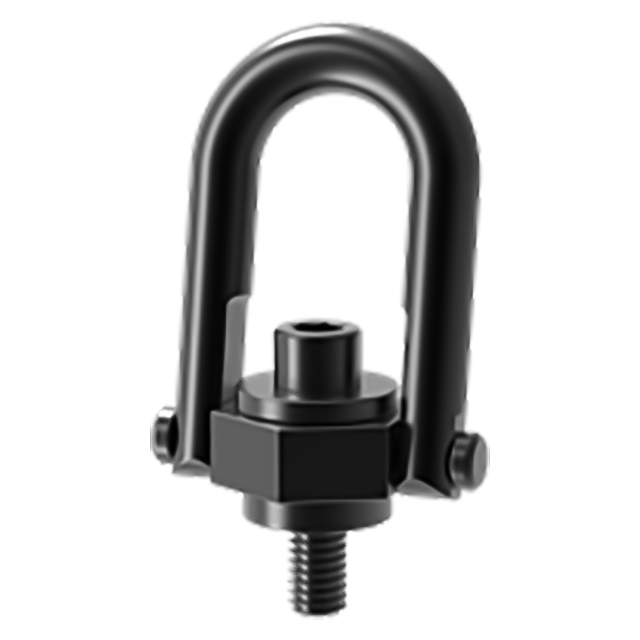

Swivel Hoist Rings
Carr Lane standard swivel hoist rings are the original safety-engineered hoist ring. These safety swivel hoist rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Standard swivel hoist rings feature a safety factor of 5:1. Carr Lane safety swivel hoist rings inch or metric threads in load capacities up to 100,000 lbs, many with a choice of bolt length. Black oxide finish is standard for all sizes of safety swivel hoist rings.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Optional Electroless-Nickel Finish
This optional finish offers excellent corrosion and wear resistance while still providing the full load capacity of the heat-treated alloy-steel hoist rings. Electroless nickel is a hard, uniform coating that is very resistant to a wide range of chemicals, which makes these hoist rings suitable for many corrosive and marine environments.
Material
| Item | Material | Heat Treat | Finish |
| Swivel Hoist Rings (Standard Ring) | Alloy Steel | Heat Treated | Black Oxide or Electroless Nickel Finish |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 7000 | M30 | 3.5mm | 46mm | 54mm | 222mm | 32mm | 44mm | 152mm | 96mm | 165mm | 85mm | 197mm | 81mm | 9mm | 640 |
