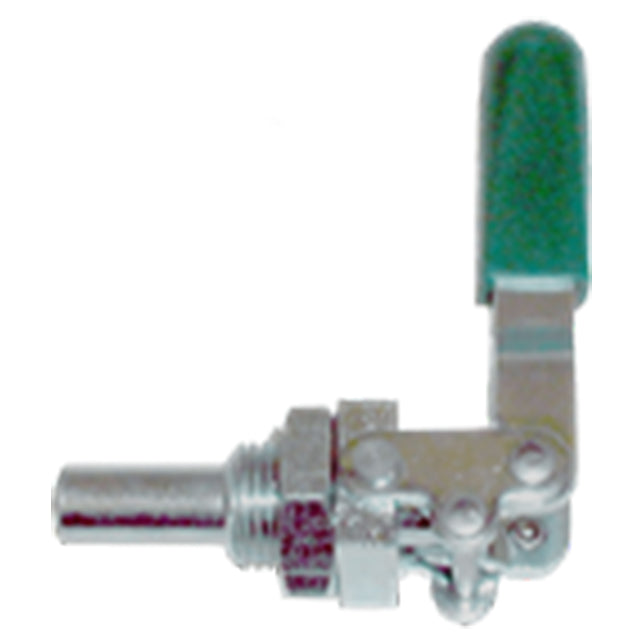

CL-150-TPC Series
Tapped Plunger Compact. Plunger clamp for mounting through panels, plates, or angle brackets. Install in a 5/8"-diameter drilled hole or a 5/8-18 tapped hole (M16x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 3/4" plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). 200 lbs holding capacity.
Clamping Action
Clamped Position (Push)
Open Position(Push) and Clamped Position(Pull)
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | Yes | Yes |
| Rivets | 400-Series Stainless | - | - | Yes | Yes |
| Handle | Vinyl | - | - | Yes | Yes |
Parts Specification
| Description | Tapped Hole In Plunger | Plunger Thread Pitch (mm) | Body Thread | Body Thread Pitch (mm) | Holding Capacity (lbs) |
| Tapped Plunger, Threaded Body | M6 | 1mm | M16x1.5 | 1.5mm | 200 lbs |
