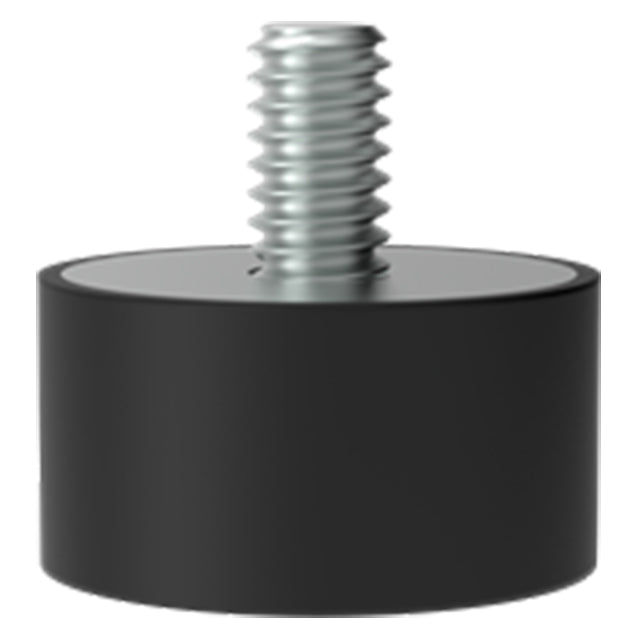

Vibration Isolation Mounts
Vibration/Isolation shock-absorbing mount designed to reduce vibration-related damage. The mount absorbs the majority of kinetic energy upon impact. Resulting in reduced shock/rebound damage and reduction in noise. These shock-absorbing mounts are frequently used as end-stop buffers or dampers.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Body | Natural Rubber (NR) | - | Black | Yes |
| Cover Plate | Steel | - | Zinc Plated | Yes |
| Threaded Stud | Steel | - | Zinc Plated | Yes |
Parts Specification
| A Diameter (mm) | B (mm) | C (mm) | D Thread (mm) | Thread Pitch | Spring Rate (lbf/in) | Max Load (lbf/in) | Max Deflection (mm) |
| 15mm | 15mm | 10mm | M4mm | 0.7 | 394 Lbf/in | 59 Lbf/in | 3.8mm |
