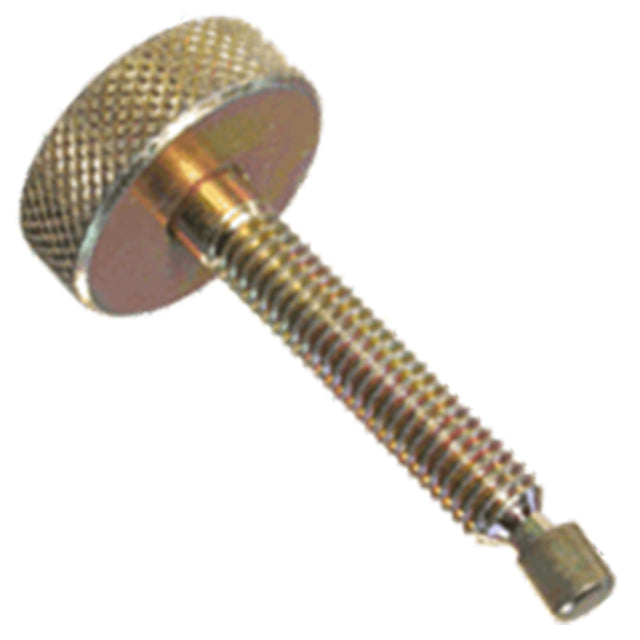

Swivel Head Screws
High-quality thumb screw that accepts a wide assortment of swivel feet. The swivel screws include the Type A small foot, which is optionally available in Delrin. Knurled head provides a positive grip for finger tightening in light clamping applications. Made in USA.
Swivel Foot
The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. To order with a Delrin foot, add "N" to the part number, e.g. CL-1-SHSN. Note: Delrin feet are not threaded-they snap on and off.
Material
| Steel, Black Oxide Finish | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Head and Steel Foot | 1215 Steel | - | Black Oxide | Yes | Yes |
| Delrin foot | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Diameter (mm) | C (mm) | D Diameter (mm) | E (mm) | F (mm) | G (mm) |
| M12 | 1.75mm | 32mm | 50mm | 9.9mm | 12mm | 12.5mm | 4.8mm |
