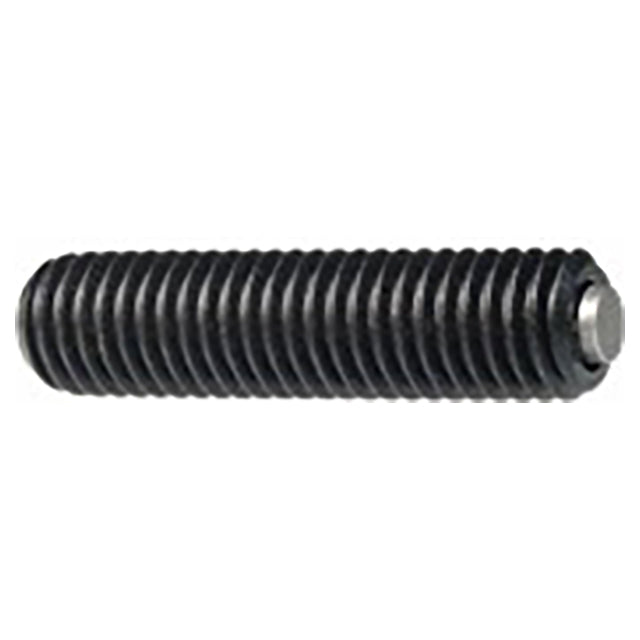

Gripper Swivel Screw-Hardened Tool Steel, Flat
Screw clamp with a flat, hardened tool Steel swivel ball. A positive stop prevents the ball from swiveling too far. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Swivel Ball | High-speed tool Steel | Yes | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | G (Degree) |
| M12 | 1.75mm | 50mm | 6mm | 6mm | 14° |
