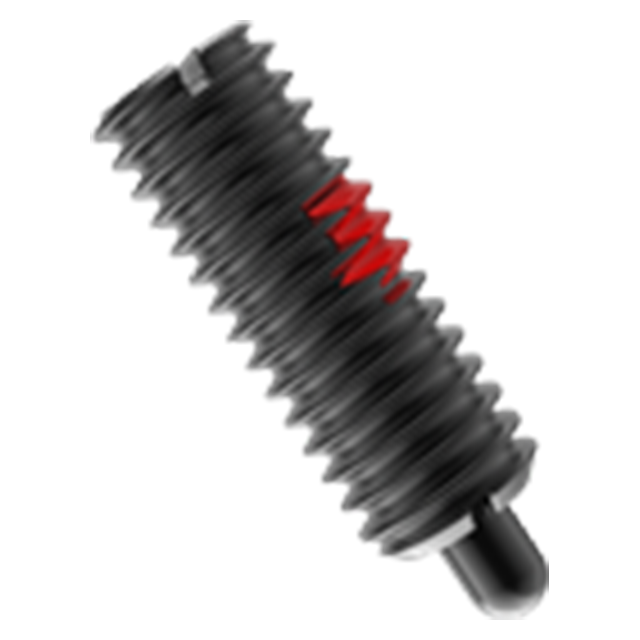

Short Spring Plungers with Extended Travel-Steel
Short Spring Plungers with Extended Travel have the body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger.
Internal View
Nose Extended
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Plunger Nose | Carburized-Hardened | - | Black Oxide | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Diameter (mm) |
| M12 | 1.75mm | 16 N | 85 N | 19mm | 6.5mm | 6.30mm |
