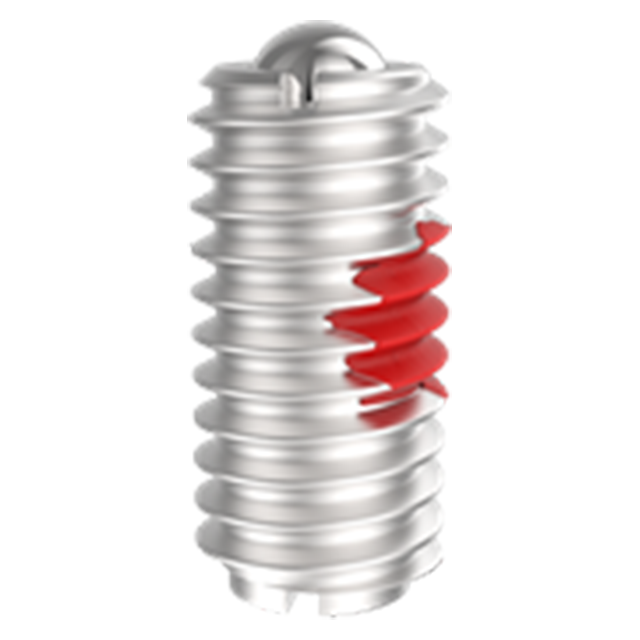

Ball Plungers-Stainless Steel
Self-contained ball-and-spring device available in many sizes and forces. The version shown here has a stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Made in USA. Install and/or adjust from either end.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | Yes | Yes | Yes | Yes |
| Ball | 440C Stainless | Yes | Yes | Yes | Yes |
| Spring | 302 Stainless | Yes | Yes | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | End Force | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Diameter (mm) |
| M12 | 1.75mm | Medium | 27 N | 54 N | 19mm | 2mm | 7.1mm |
