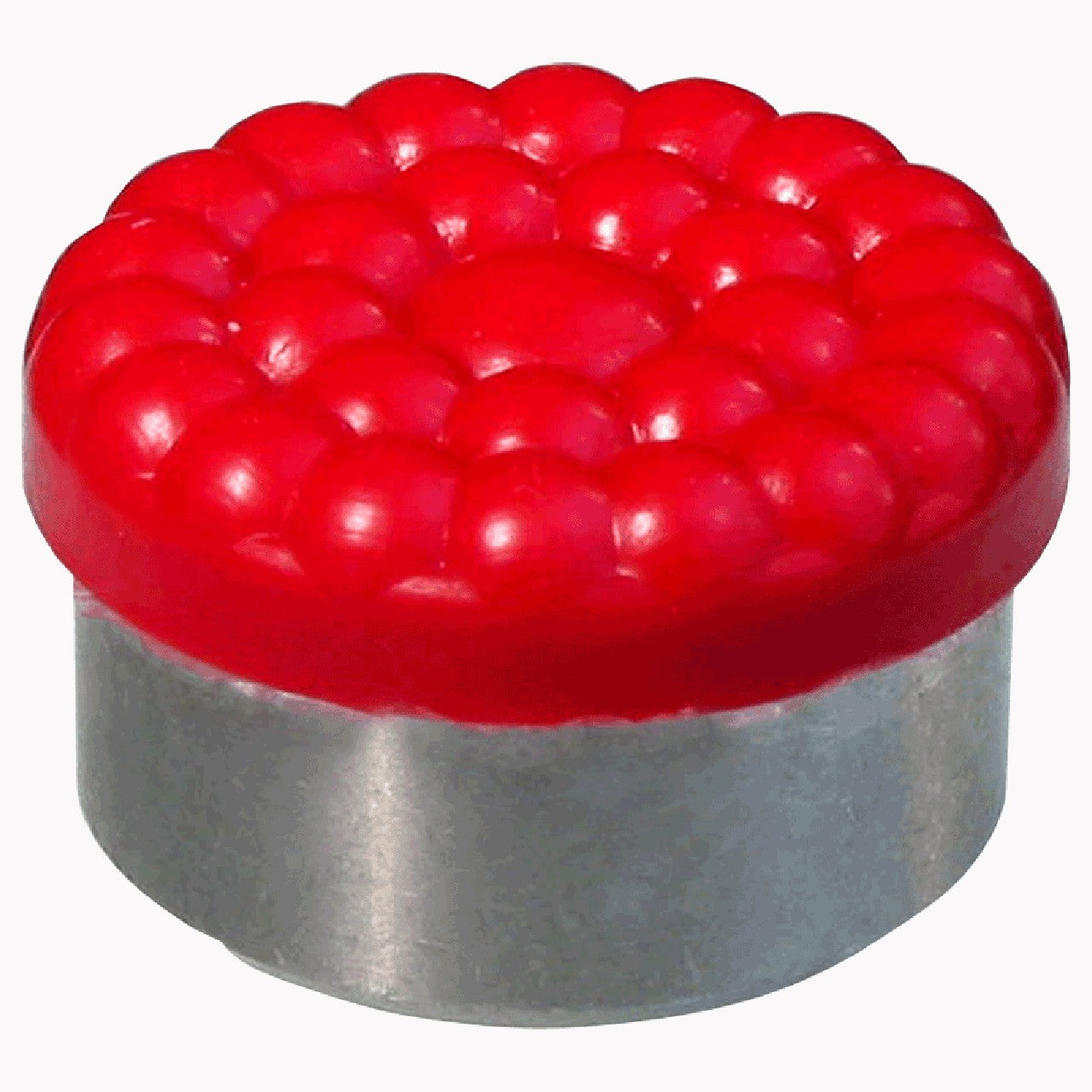

Round Gripper-Bonded Urethane
Round Grippers are replaceable inserts that provide additional holding force and/or wear resistance. The grippers shown here have a urethane surface permanently bonded to a stainless steel pad. This non-marking, non-staining urethane provides excellent protection against damage to finished workpieces. The bubbled texture of the urethane surface offers firm gripping, yet allows air to escape so that no suction is created under load. The stainless steel pad provides high strength and excellent corrosion resistance. Made in USA.
Installation
Fasten from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-series stainless steel pad with a permanently bonded urethane surface. Urethane surface has Shore A durometer hardness of 35 (comparable to a pencil eraser), 60 (comparable to a car tire), or 80 (comparable to an inline-skate wheel) | - | - | Yes | Yes |
Parts Specification
| A Diameter (mm) | Durometer Hardness | Color | B (mm) | C Thread | Thread Pitch (mm) | D (mm) | G Diameter (mm) |
| 12mm | 80 | RED | 12mm | M5 | 0.8mm | 6mm | 13mm |
