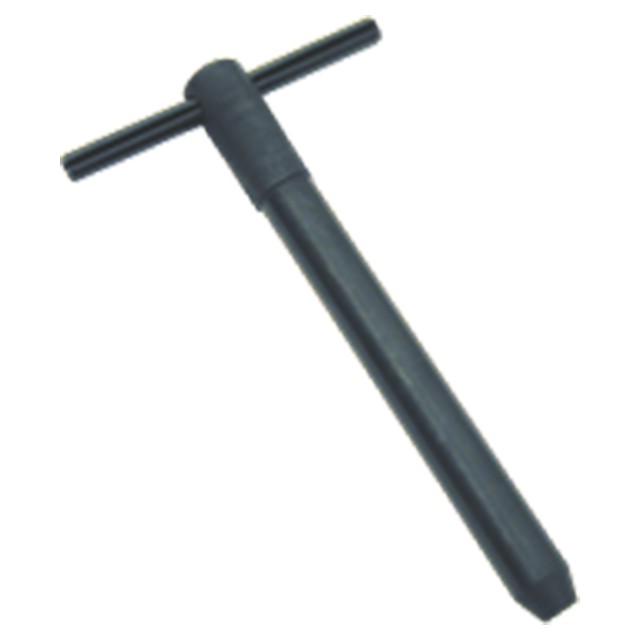

Jig Pins
Removable locating pins, precision ground for accurately aligning holes. Similar to an L or T Pin, but with an integral shoulder to keep the handle raised, and with pin diameter ground .0003" under nominal size. To convert from a T handle to an L handle, slide the roll-pin handle by tapping it with a hammer. Made in USA.
Application Information
Jig Pins have a roll-pin handle that can be converted from a T handle to an L handle.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1144 Steel | Heat Treated | Black Oxide |
| Handle | Spring Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F (mm) |
| 12mm | 11.986mm | 101.5mm | 7mm | 14mm | 76mm | 6.5mm |
