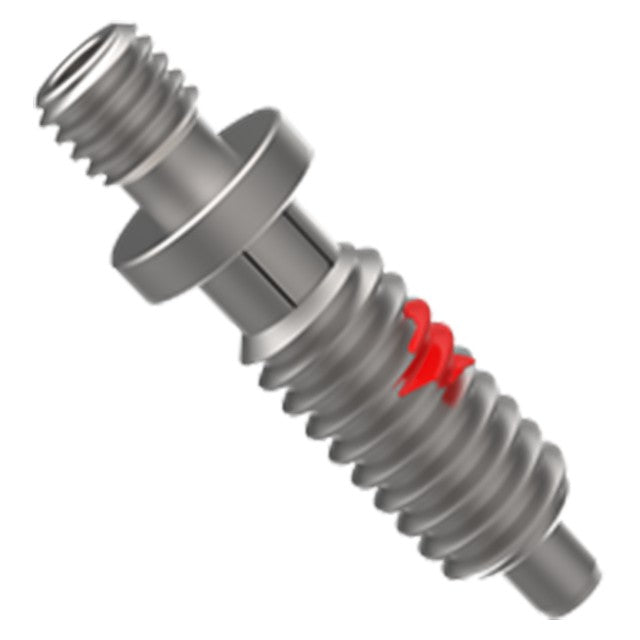

Hand-Retractable Plungers-Threaded Stud for Knob Handle
Spring-loaded plunger that locks in retracted position. To lock, pull knob back and turn 90°. Slight taper on plunger tip for easy alignment. The threaded-stud version accepts virtually any type of knob handle. Knob handles can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications). Made in USA.
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B Diameter (mm) | C (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) | H Thread |
| M12 | 1.75 mm | 11 N | 44 N | 6 mm | 6.5 mm | 22 mm | 3.2 mm | 12.5 mm | 11 mm | 3/8-16 |
