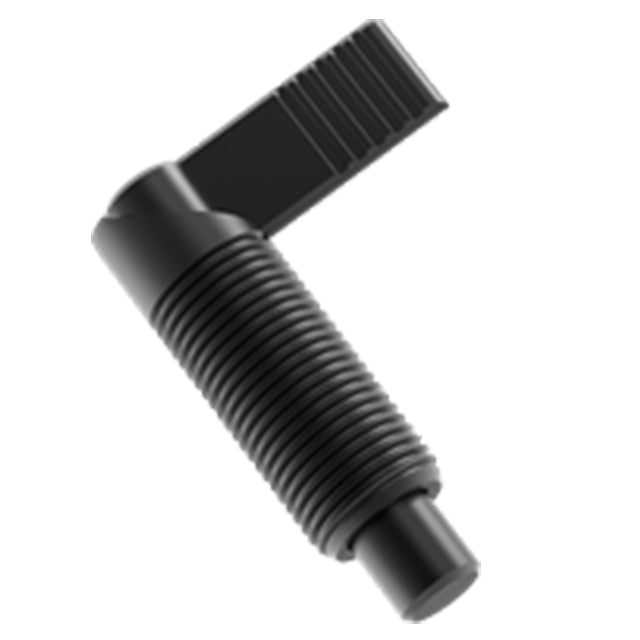

Hand-Retractable Plungers Cam Handle
Precision Cam actuated index plunger. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Lever Arm | Steel | - | Black Oxide | Yes |
| Plunger | Steel | Heat Treated | - | Yes |
| Body | Steel | - | Black Oxide | Yes |
| Sleeve | Plastic | - | - | Yes |
Parts Specification
| A Diameter (mm) | B Thread | Thread Pitch | C (mm) | D (mm) | E (mm) | F (mm) | Initial End Force (lbs) | Final End Force (lbs) |
| 11.9mm | M20 | 1.5 | 69.0mm | 11.9mm | 37.1mm | 36.0mm | 4.7 lbs | 12.8 lbs |
