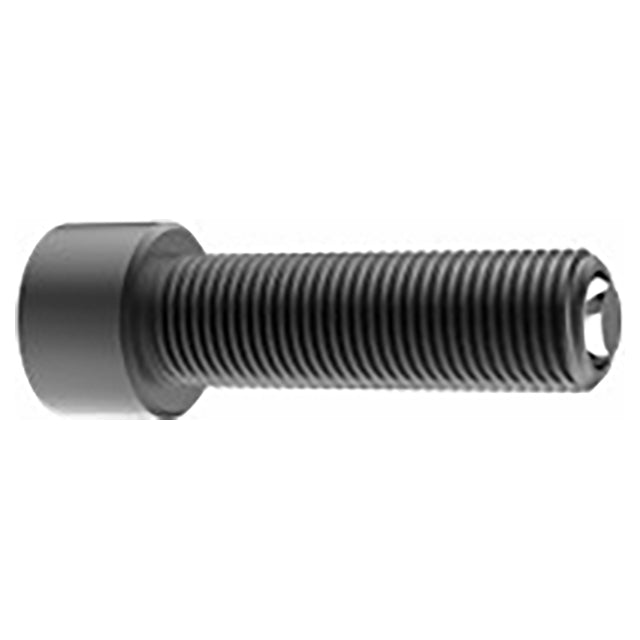

Ball-End Thrust Screws-Swivel Ball
Ball-End Thrust Screws are heavy-duty screw clamps with a ball contained in the end. These thrust screws have a large head and large hex-socket for excellent strength. Made in USA.
Material
| Item | Material | Heat Treat | Finish |
| Body | Alloy Steel | Yes | Black Oxide |
| Ball | 440c Stainless Steel | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F Diameter (mm) | G (mm) | H Diameter (mm) |
| M12 | 1.75mm | 101.5mm | 100mm | 8.73mm | 12mm | 18mm | 10mm | 6.1mm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
