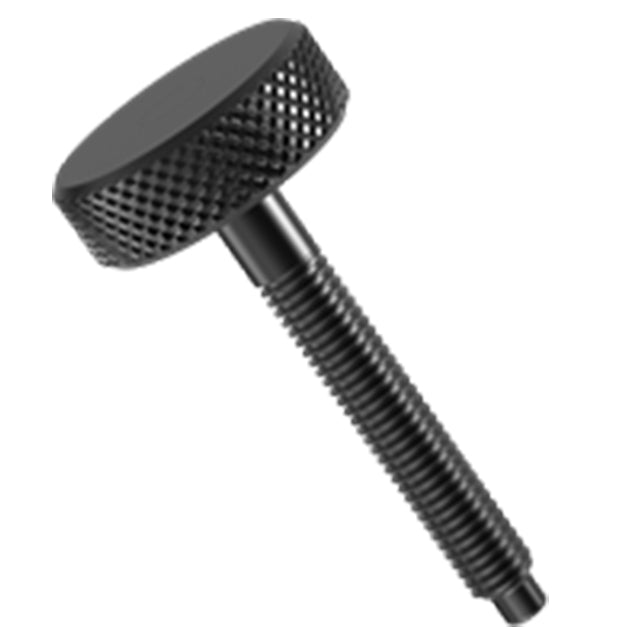

Knurled-Head Screws
High-quality thumb screw. Knurled head provides a positive grip for finger tightening in light clamping applications.
Application Information
Material
| STEEL | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | CDiameter (mm) | D (mm) | E (mm) | FDiameter (mm) | G (mm) |
| M10 | 1.5mm | 65mm | 32mm | 11mm | 6.5mm | 6.9mm | 4.8mm |
