Double-End Gooseneck Clamp Strap Assembly
Gooseneck version of Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90 Degree for clear loading. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

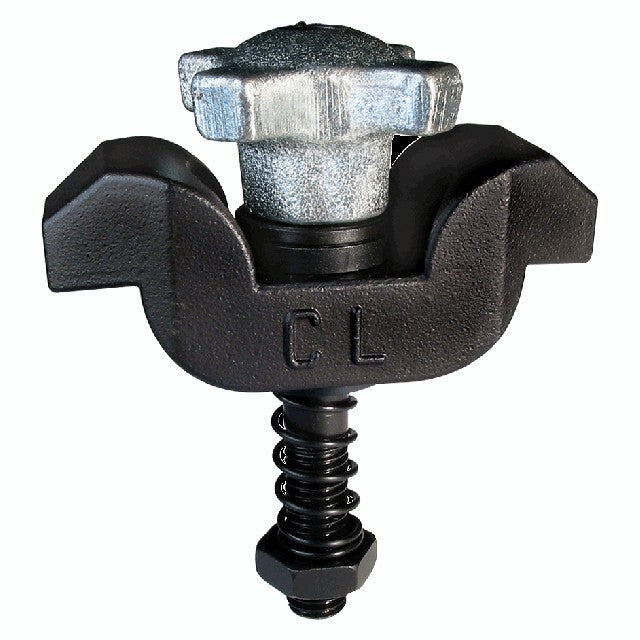

Assembly with Hand Knob & Spherical Washer (-4)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Hand Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| Alloy Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Hand Knob | Spherical Washer |
| M16 | 2mm | 20mm | 40mm | 100mm | CL-842-GCS | CL-11-SPG | CL-3-FW | CLM-16X110-STUD | CLM-16-JN | CLM-10-HK-10 | CL-4-SW |
