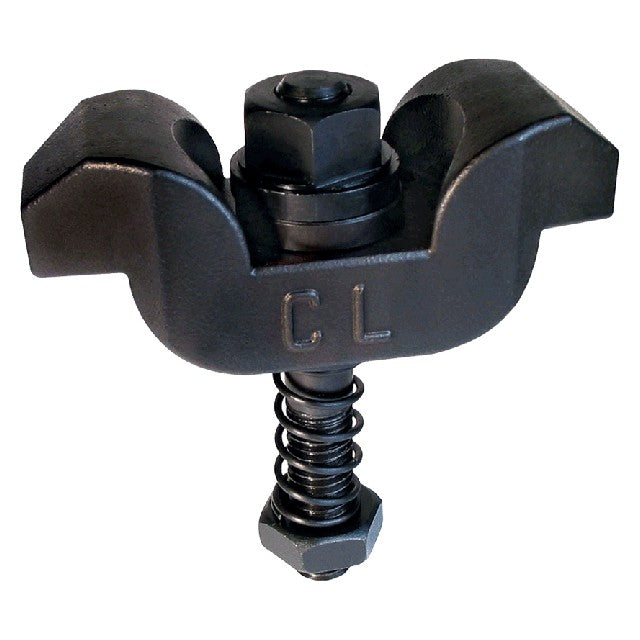

Double-End Gooseneck Clamp Strap Assembly
Gooseneck version of Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90 Degree for clear loading. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.
Assembly with Spherical Nut & Washer (-1)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Spherical Nut and Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| Alloy Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) |
| M16 | 2mm | 20mm | 40mm | 100mm |
