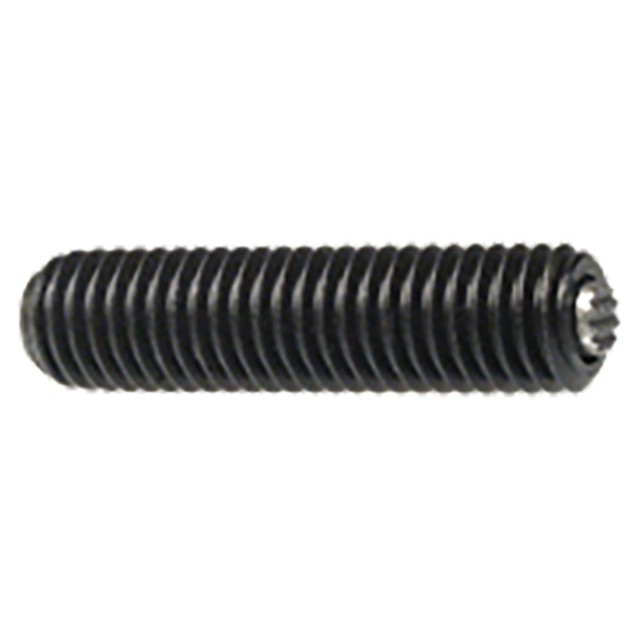

Gripper Swivel Screws
Screw clamp with a serrated, hardened tool steel swivel ball. Serrated grippers are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. A positive stop prevents the ball from swiveling too far. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Swivel Ball | High-speed tool steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | G | Serrations | Serration Dimensions (mm) |
| M10 | 1.5mm | 25mm | 4mm | 5mm | 15° | SUPER FINE | 1.6x90°mm |
