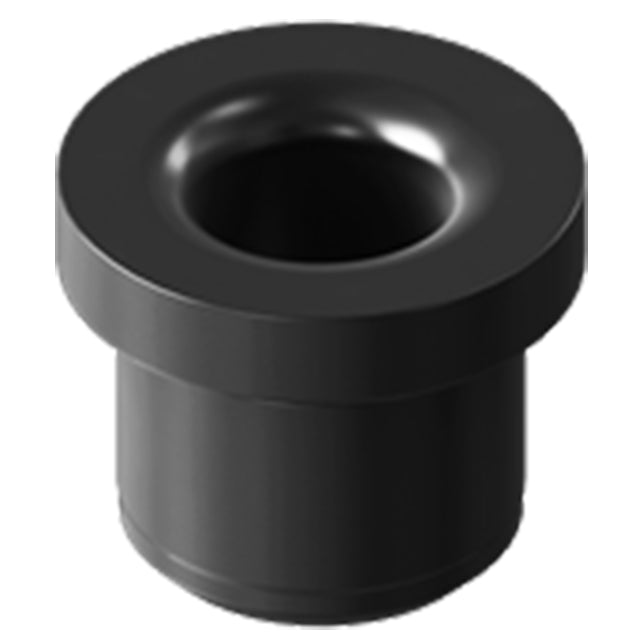

Bushings for Bullet-Nose Dowels
Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Made in USA.
Application Information
Material
1144 steel, Heat Treated Rc 50-55, black oxide finish. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | B Diameter (mm) | C Diameter Nominal (mm) | C Diameter Actual (mm) | D (mm) | E (mm) |
| 10mm | 10.002mm | 18mm | 15mm | 15.008mm | 9mm | 3mm |
